Rentals
Powerful Rentals for Your Every Need
Discover the CEES Advantage
Charles Equipment rents everything from generators to air conditioning to heaters to keep you powered and comfortable. We have generator sizes ranging from 2000 watts to 2000 KW in varying voltages and phases. Our heating and cooling sizes range from 8 to 50 tons of AC, and 10 to 50kW of heating. We have all the necessary cables and panels ready to have a full system up and running in a matter of hours.

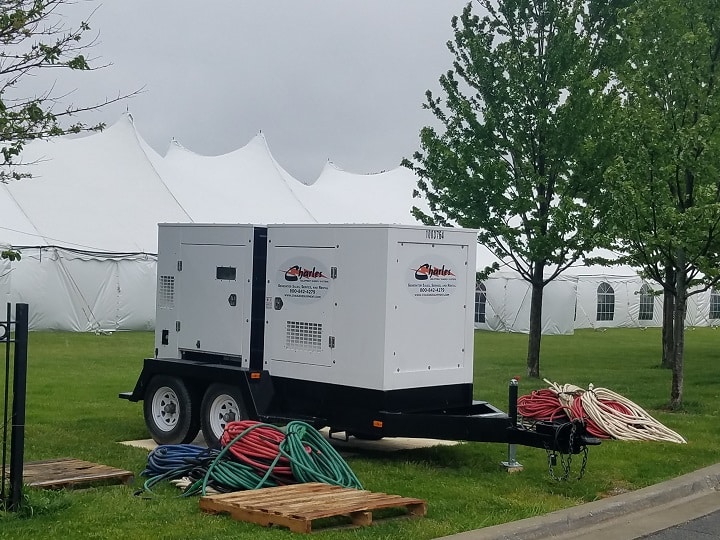

50 KW Model 120/240/208/480
50kW Super Quiet Mobile Diesel Generator can supply 75 Amps at 480 Volts, 174 Amps at 208 Volts, 200 Amps Single Phase.
Call: (630) 834-6000
Email: cees@charlesequipment.com
12 Ton AC Model 208
Space saving 12 ton AC units are great for weddings and special events.
Call: (630) 834-6000
Email: cees@charlesequipment.com
12 Ton AC Model 208
Space saving 12 ton AC units are great for weddings and special events.
Call: (630) 834-6000
Email: cees@charlesequipment.com
Generators
50 KW Model 120/240/208/480
- Prime Rating — 50 kW (62 kVA) Standby Rating — 55 kW (68 kVA) Three-Phase, 60 Hertz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load 2.9 GPH, 50% Load 4.8 GPH, 75% Load 6.2 GPH, 100% Load 8 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com
100kW model 120/240/208/480VAC
- Rating: 100 kW (125 kVA) — Standby Rating: 110 kW (137 kVA) Three-Phase, 60 Hz, 0.8 PF
- Prime Rating: 100 kW (137 kVA) — Standby Rating: 110 kW (137 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load 2.9 GPH, 50% Load 4.8 GPH, 75% Load 6.2 GPH, 100% Load 8 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

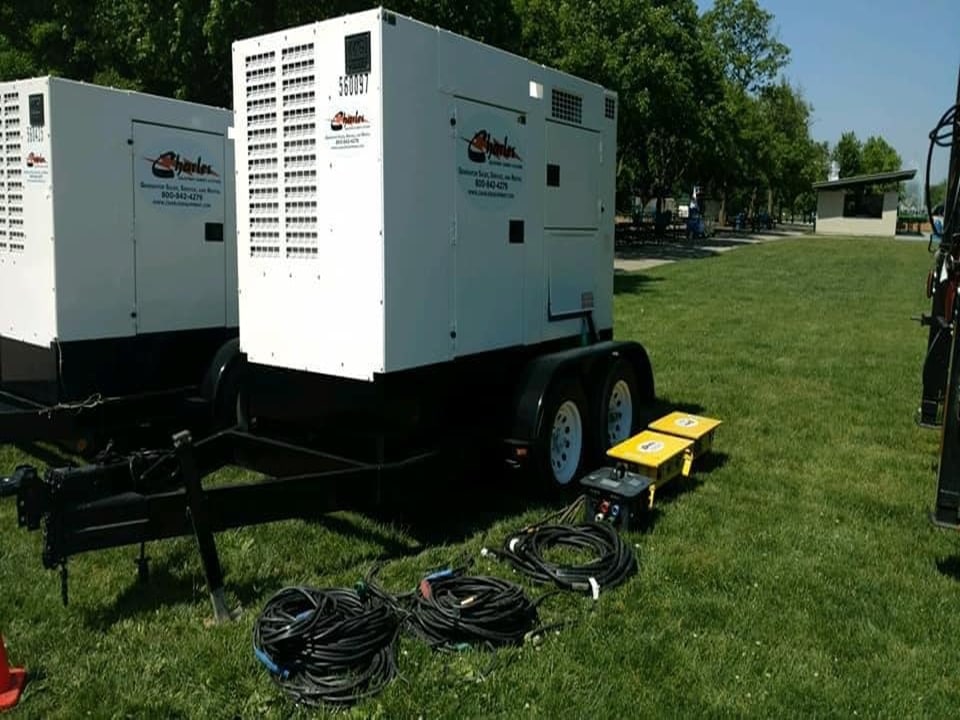

56kW model 120/240/208/480VAC
- Prime Rating: 56 kW (70 kVA) — Standby Rating: 62 kW (77 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load 1.5 GPH, 50% Load 2.4 GPH, 75% Load 3.2 GPH, 100% Load 4.7 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

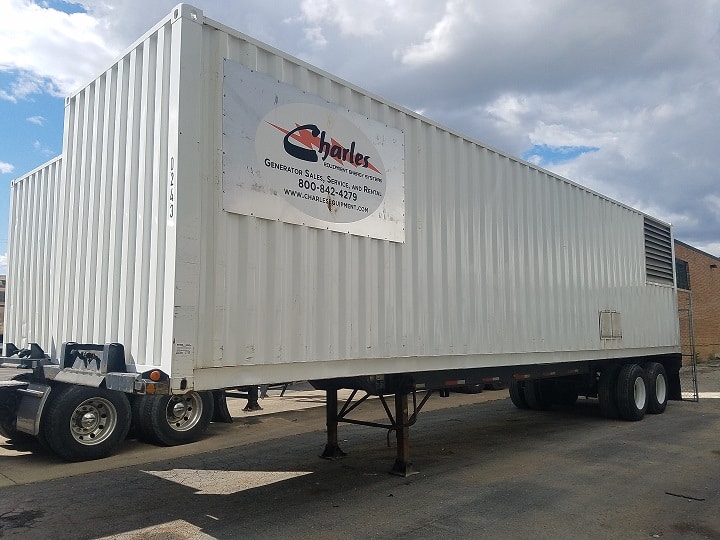

1750kW model 480VAC
- Prime Rating: 1600 kW (2000 kVA) — Standby Rating: 1750 kW (2187 kVA) Three-Phase, 60 Hz, 0.8 PF 3-phase 480V
- Fuel Consumption: 25% Load 40 GPH, 50% Load 69 GPH, 75% Load 94 GPH, 100% Load 121 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com
200kW model 120/240/208/480VAC
- Prime Rating: 200 kW (250 kVA) — Standby Rating: 220 kW (275 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load .9 GPH, 50% Load 1.6 GPH, 75% Load 2.4 GPH, 100% Load 3.1 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com
36kW model 120/240/208/480VAC
- Prime Rating: 36 kW (45 kVA) — Standby Rating: 40 kW (50 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load .9 GPH, 50% Load 1.6 GPH, 75% Load 2.4 GPH, 100% Load 3.1 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

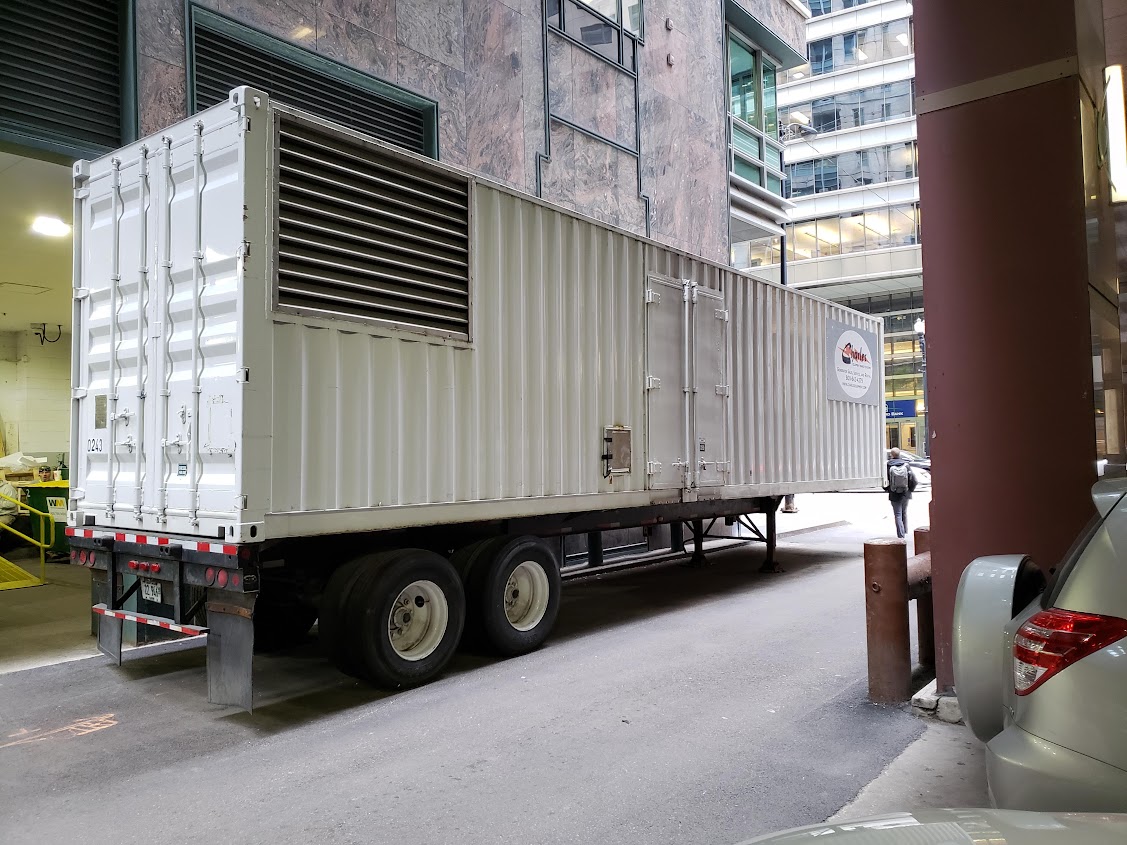

1100kW model 120/240/208/480VAC
- Prime Rating: 1000 kW (1375 kVA) — Standby Rating: 1100 kW (1375 kVA) Three-Phase, 60 Hz, 0.8 PF 3-phase 208, 480V Switchable
- Fuel Consumption: 25% Load 19.1 GPH, 50% Load 35.8 GPH, 75% Load 54.1 GPH, 100% Load 72.2 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

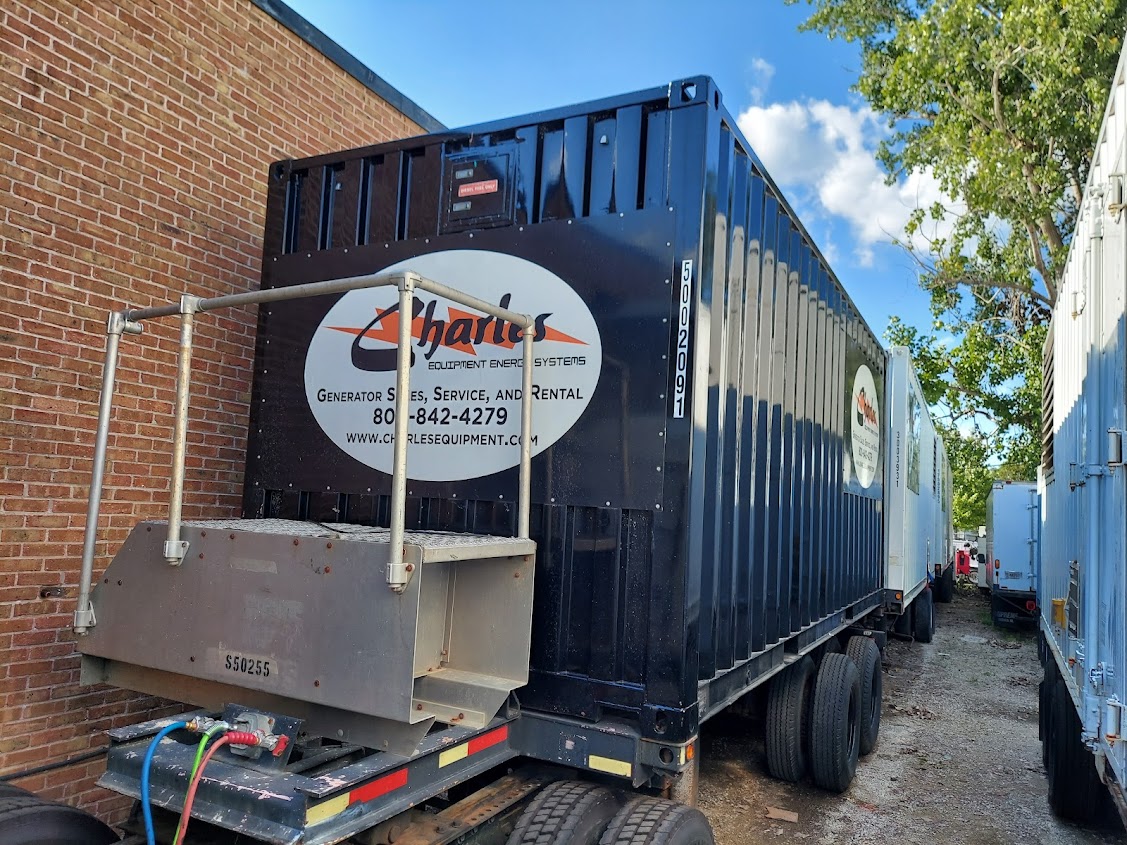

500kW model 120/240/208/480VAC
- Prime Rating: 500 kW (625 kVA) — Standby Rating: 550 kW (687 kVA) Three-Phase, 60 Hz, 0.8 PF 3-phase 208, 480V Switchable
- Fuel Consumption: 25% Load 19.1 GPH, 50% Load 35.8 GPH, 75% Load 54.1 GPH, 100% Load 72.2 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com
150kW model 120/240/208/480VAC
- Prime Rating: 150 kW (187 kVA) — Standby Rating: 160 kW (200 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load 3.5 GPH, 50% Load 7.3 GPH, 75% Load 10.7 GPH, 100% Load 13.8 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

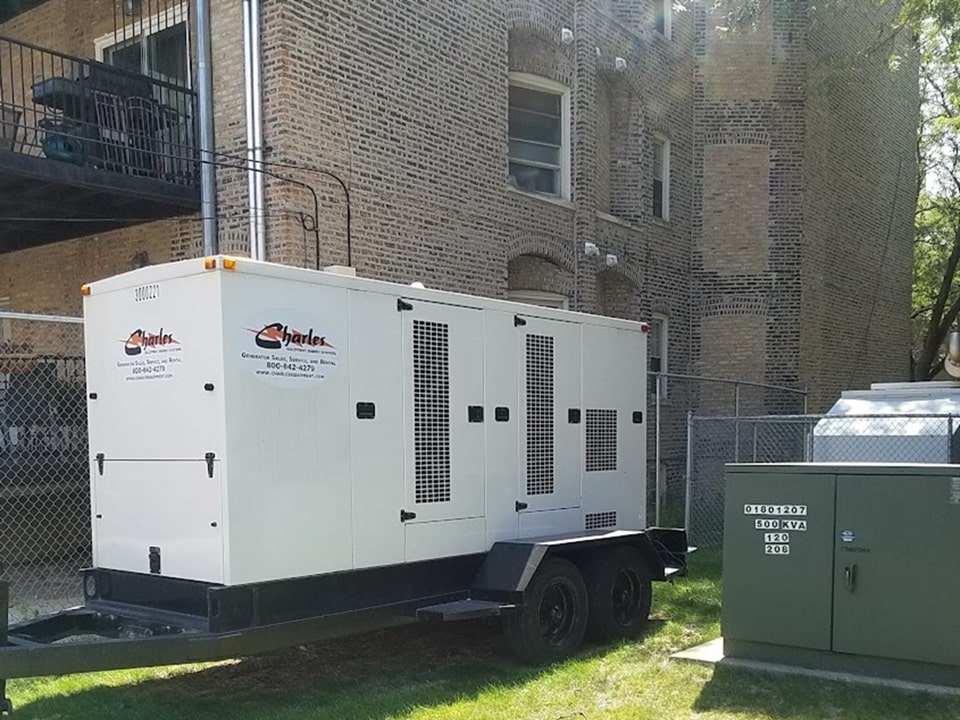

300kW model 120/240/208/480VAC
- Prime Rating: 300 kW (375 kVA) — Standby Rating: 325 kW (406 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load 6.7 GPH, 50% Load 11.6 GPH, 75% Load 17.1 GPH, 100% Load 23.2 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

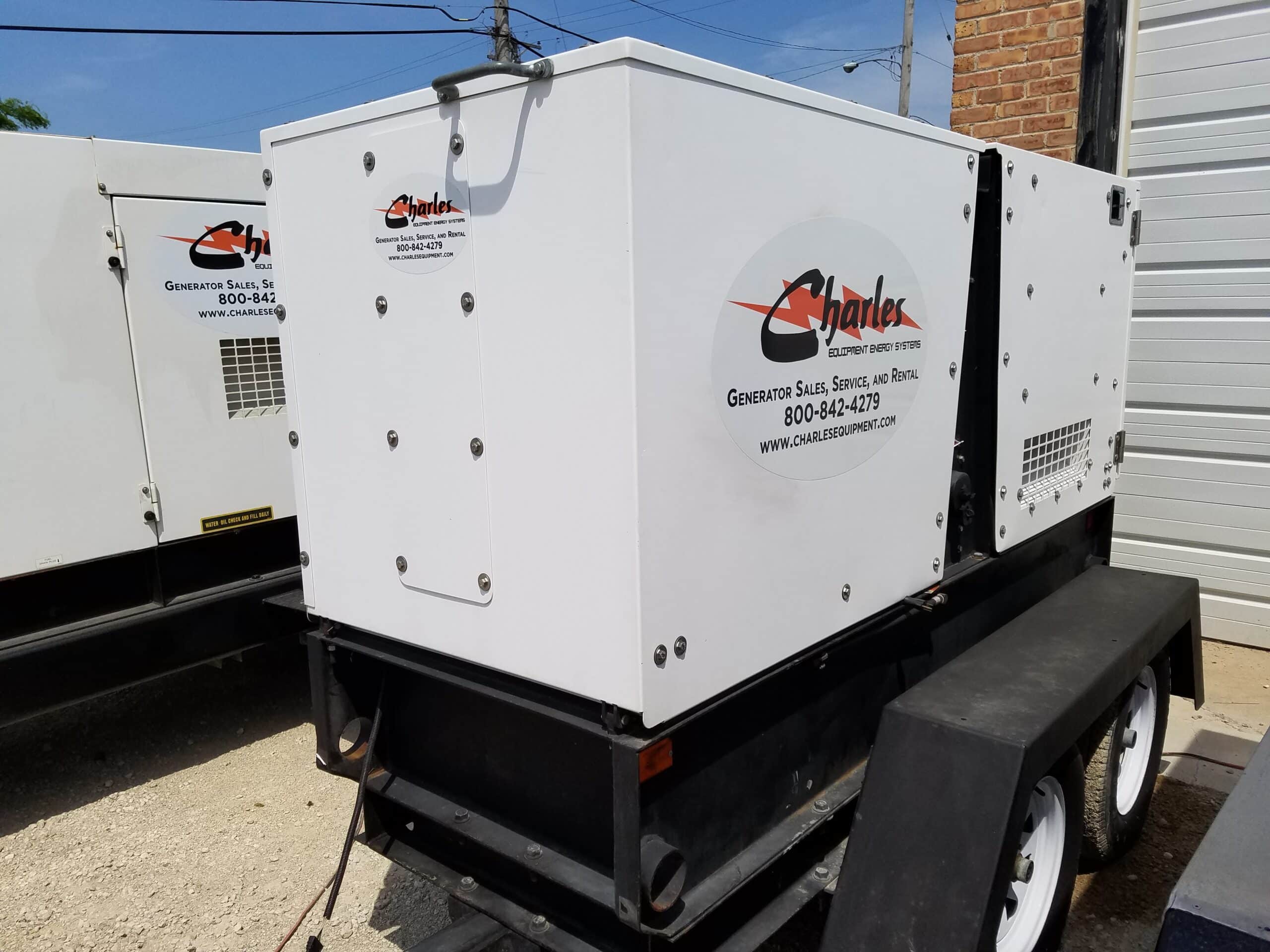

45kW model 120/240/208/480VAC
- Prime Rating: 45 kW (56 kVA) — Standby Rating: 50 kW (62 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load 1.1 GPH, 50% Load 2.2 GPH, 75% Load 3.2 GPH, 100% Load 4.3 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com

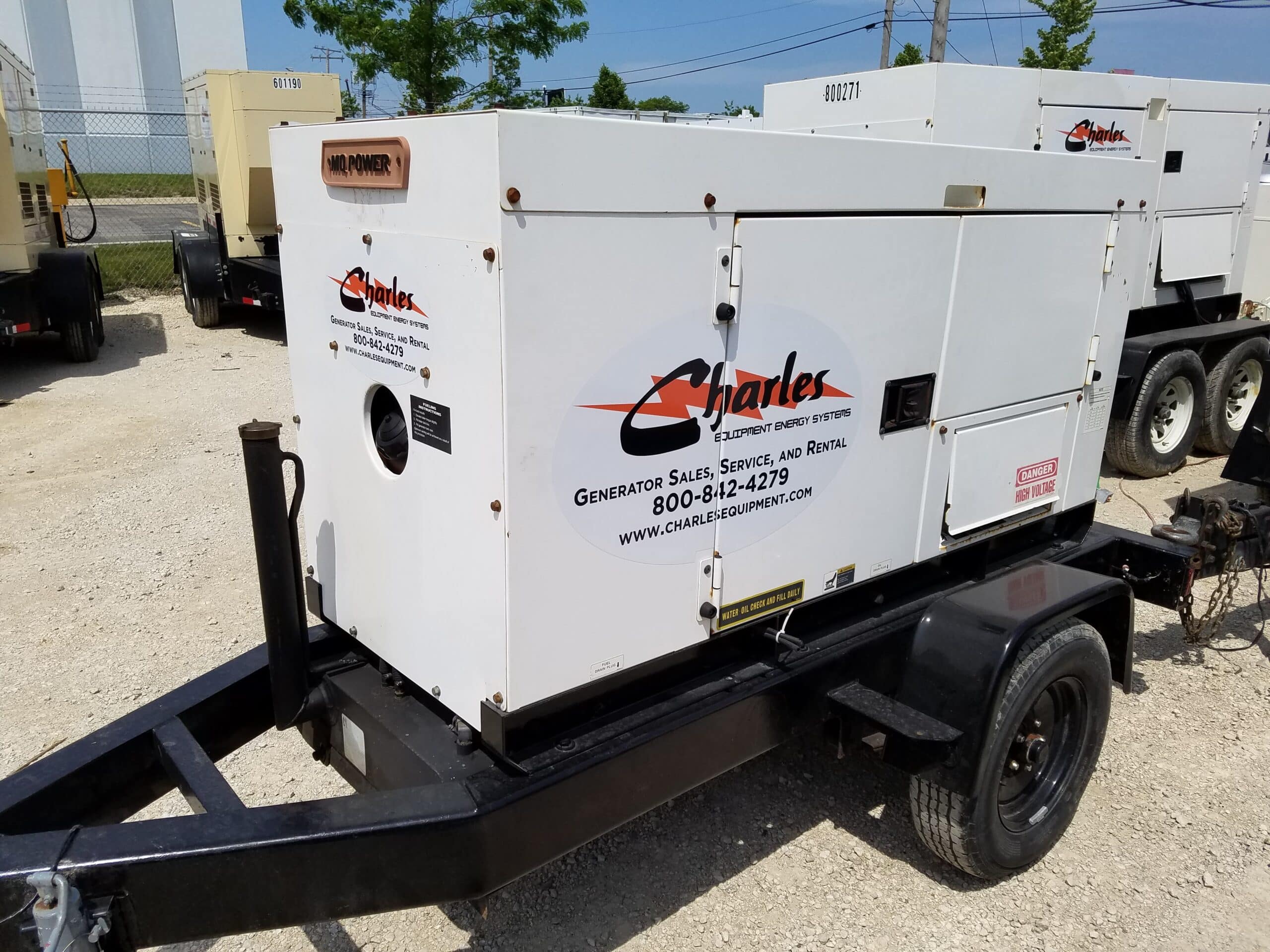

20kW model 120/240/208/480VAC
- Prime Rating: 20 kW (25 kVA) — Standby Rating: 20 kW (25 kVA) Three-Phase, 60 Hz, 0.8 PF
- Single phase 120, 127,139, 240, 254, 277V Switchable
- 3-phase 208, 220, 240,416, 440, 460, 480V Switchable
- Fuel Consumption: 25% Load .78 GPH, 50% Load 1.1 GPH, 75% Load 1.45 GPH, 100% Load 1.96 GPH
- Available for Standby, Single Shift (50 hrs/week), Double Shift (100 hrs/week), Triple Shift (unlimited hours per week)
Call: (630) 834-6000
Email: cees@charlesequipment.com
Distribution

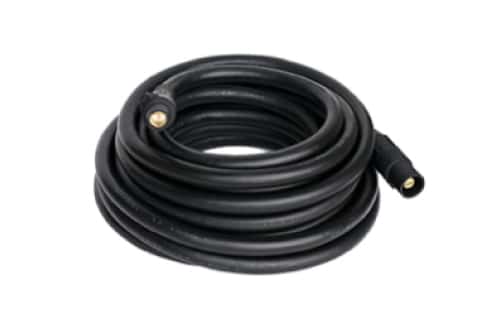

4-0 Cam
UL (2000V)/C(UL) 600V listed generator cable is constructed with a 30 ga. extra flexible Class K (ASTM-B) bare, annealed electrolytic copper. It is equipped with an added inner jacket for your safety. This separator is extruded in a high contrast color and applied between the conductor and outer sheath for increased insulation, added flexibility, and easily identifiable damage or wear. The outer jacket TYPE PPE (FT5) provides oil, water, acid, gas, ozone, resistance, flame retardant, durability, and extreme flexibility at all operating temperatures. Manufactured to (UL) and c(UL) standard 1650, MSHA listed, RoHS Compliant and surpasses NEC 400 requirements and may be used in any application where Type W, G, or G-GC cable is used.
Call: (630) 834-6000
Email: cees@charlesequipment.com

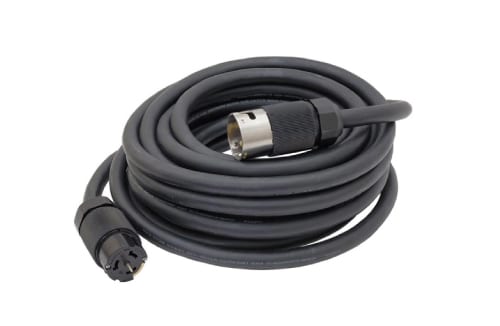

50a Twist
These multi-conductor, plug and play cables are very user-friendly and can reduce the number of cables needed on a job site. Spider Box cables are expertly assembled and factory tested to ensure they work out of the box. Tough enough for the most demanding conditions, they have proven themselves in both industrial and rental applications. So you know they will perform on your job site.
Call: (630) 834-6000
Email: cees@charlesequipment.com
UL/C(UL) Entertainment Cable
UL / C(UL) Listed 600V stage & lighting entertainment cable (E-234353 UL; E-204219 C(UL)) displays excellent durability and flexibility under the most challenging operating conditions. It is furnished with a 30 ga. extra flexible Class K (ASTM-B) bare, annealed electrolytic copper. A water-resistant safety insulator separates the outer sheath, which is composed of a –49°C to +105°C tested to –30°C +90°C elastomer compound (FT-5). The cable is RoHS
compliant and will withstand abrasion, extreme temperatures, and long periods of immersion in water, oil or acid. It is U:L rated at 600 volts for Type SCE and it is C(UL) rated at 600 volts for Type PPC/TPE.
Call: (630) 834-6000
Email: cees@charlesequipment.com

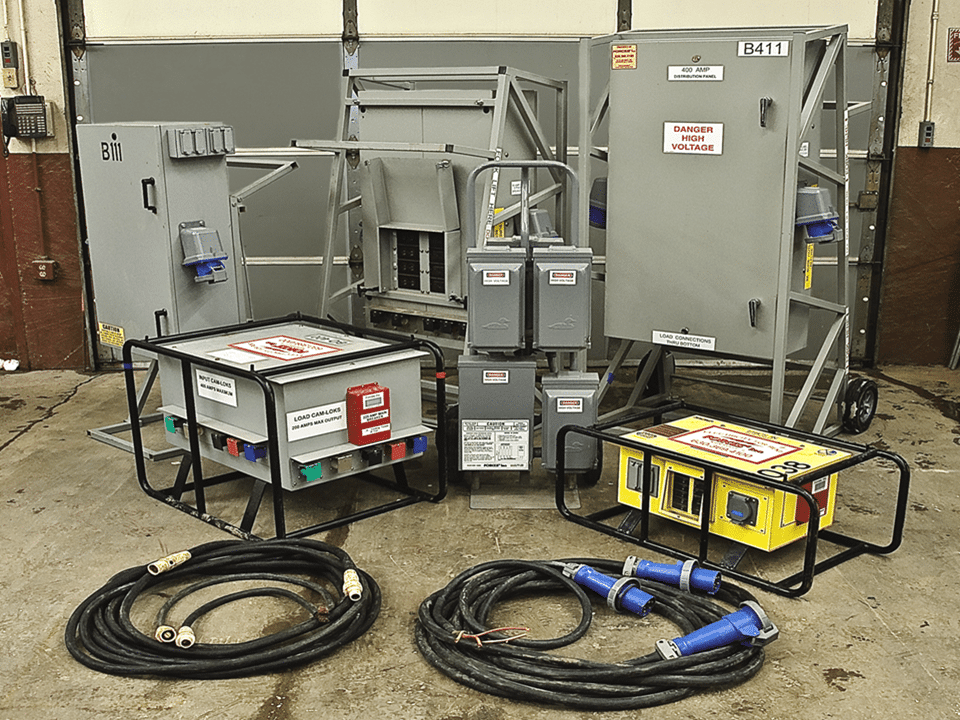

Distribution
In situations that demand a significant amount of power, anywhere from 60A up to 2000A, our switches and panels, can handle the job. They are equipped for easy maneuvering some with fork pockets to help you wrangle it into position. These units are built tough and will stand up to heavy rental and industrial use, and can support temporary and emergency power needs for planned outages and urgent emergency needs.
Call: (630) 834-6000
Email: cees@charlesequipment.com

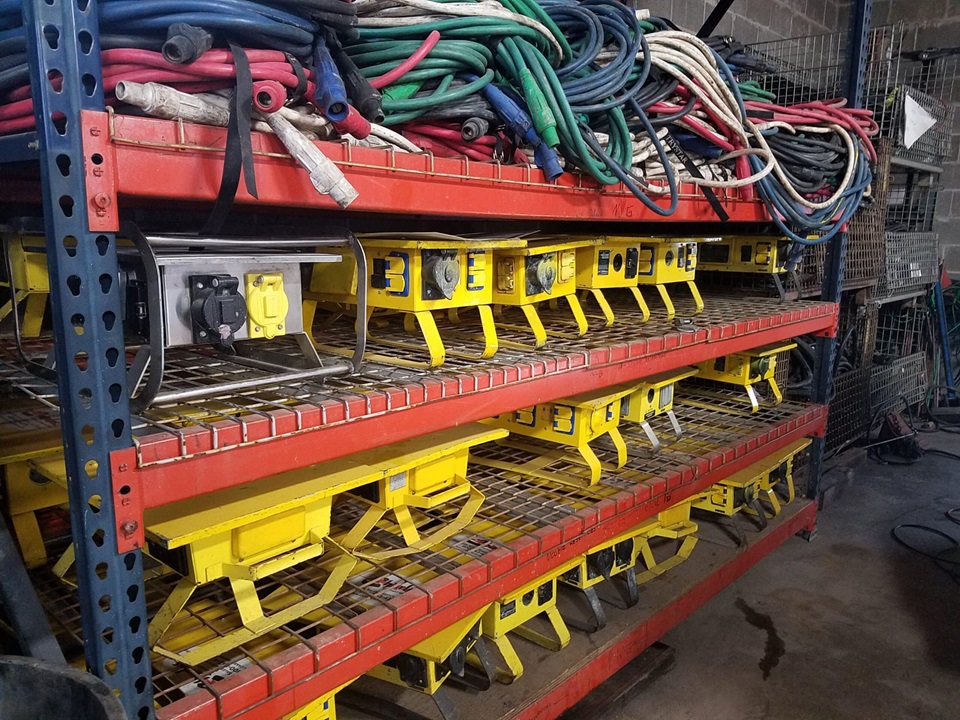

Spider Boxes
50 Amp Inlet, 8 Receptacle Power Distribution “Spider” Boxes are ruggedly built with a heavy duty frame and have a 60A main inlet feed and dedicated or duplex receptacles, built-in circuit breaker protection, OSHA compliant, outdoor-rated enclosure & weather-resistant outlet covers.
Call: (630) 834-6000
Email: cees@charlesequipment.com
AC & Heating
AC Units
12 Ton AC Model 208
The ultimate portability and simplicity our 12 ton portable air conditioners are designed for even the harshest environments, though they are ideal for a multitude of different situations. These versatile portable cooling systems are ideal for a host of applications including emergency or planned short-term cooling needs. Portable air conditioner systems work well with our generators as well, to provide a solution for virtually any situation.
Call: (630) 834-6000
Email: cees@charlesequipment.com

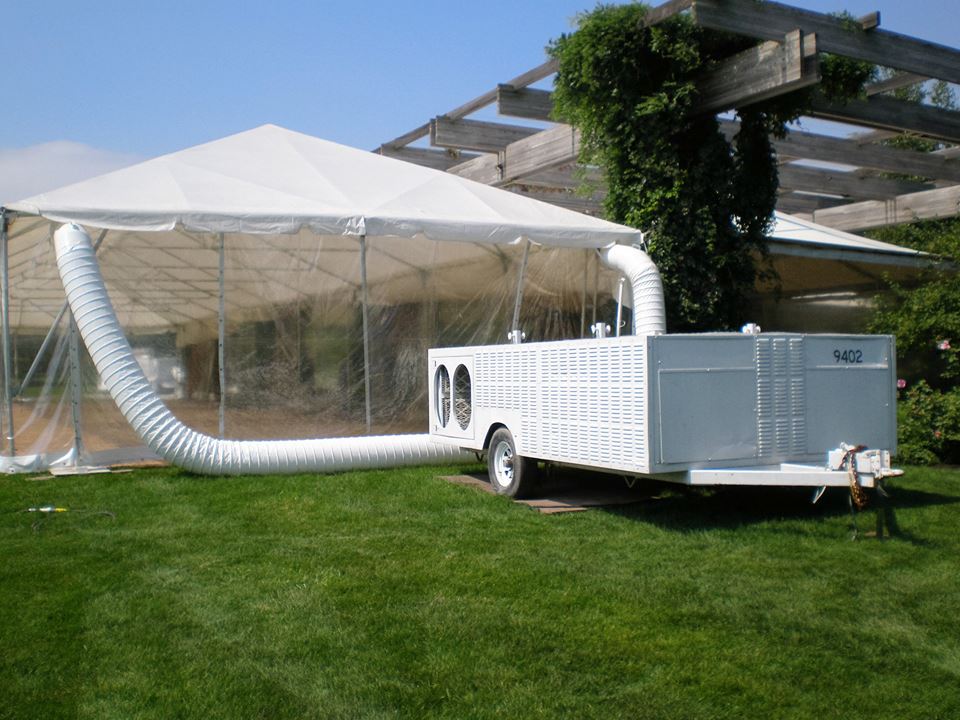

30 TON AC
30 Ton Cooling: Our 30 ton trailer mounted units are built around a strong frame and are ideal for temporary cooling in renovation projects. In particular, applications include temporary cooling when the building air conditioner is down for maintenance. A perfect air conditioner for a tent or other temporary structure that needs commercial cooling. A compact, lightweight trailer for portable/temporary use, this DOT-rated trailer can maneuver where you need cooling most.
Call: (630) 834-6000
Email: cees@charlesequipment.com

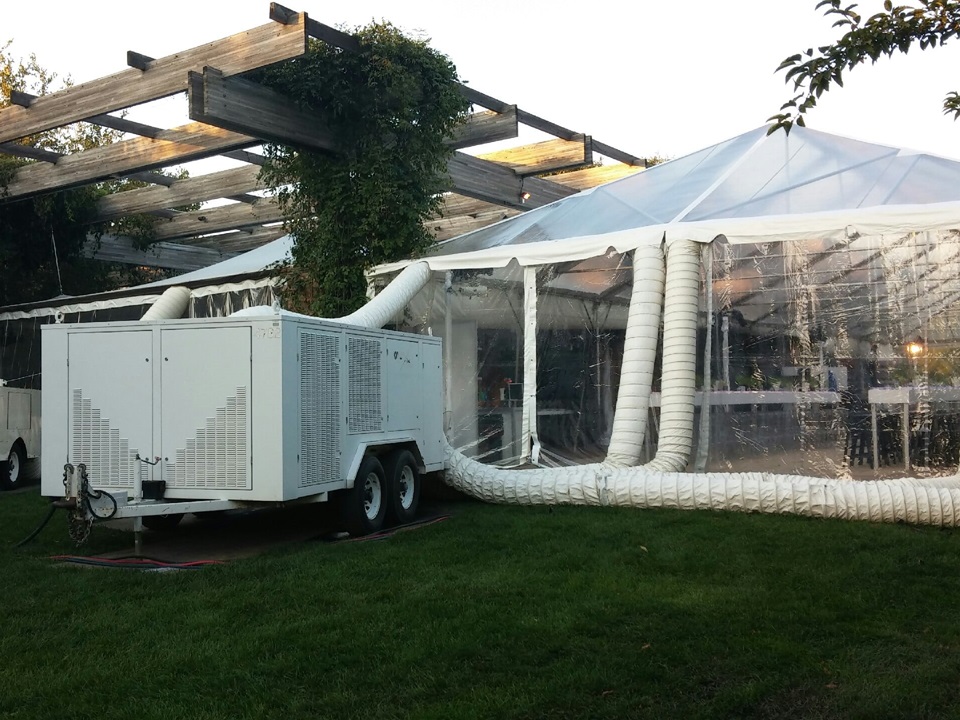

50 Ton Cooling
The 50T Trailer is ideal for temporary cooling large tents for events. A perfect air conditioner for a tent or other temporary structure that needs high volume cooling. The DOT-rated trailer includes dual-axles, hydraulic brakes, dual leveling jacks and a spare tire.
Call: (630) 834-6000
Email: cees@charlesequipment.com
20 Ton Portable Cooling Unit
Large packaged air conditioning units come conveniently on a trailer which can be readily located right outside the space you want to condition. A 20 ton portable cooling unit can cool typically up to 8,000 square feet more or less, depending on lights, occupants, ambient temperatures and envelope construction. Popular applications of these units are: Special events, movie sets, office buildings, warehouses, schools, auditoriums, churches, medical buildings, hospitals, retail stores, malls, movie theaters or anywhere large cooling spaces are required. The beauty of these units is that they don’t take up any space in the conditioned space and since they are outside the space they are quieter.
Call: (630) 834-6000
Email: cees@charlesequipment.com

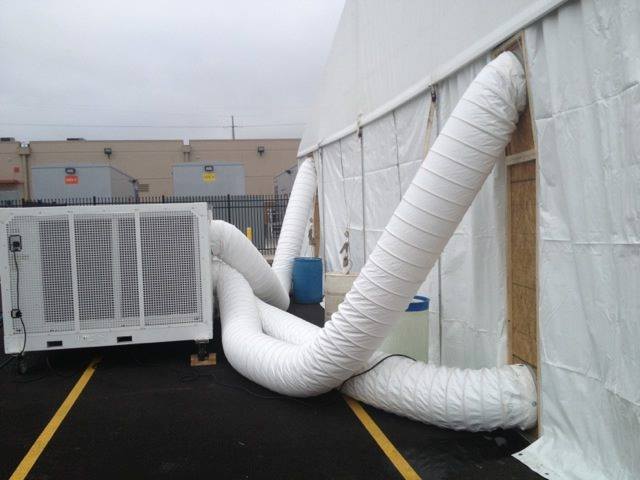

AC 2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Call: (630) 834-6000
Email: cees@charlesequipment.com

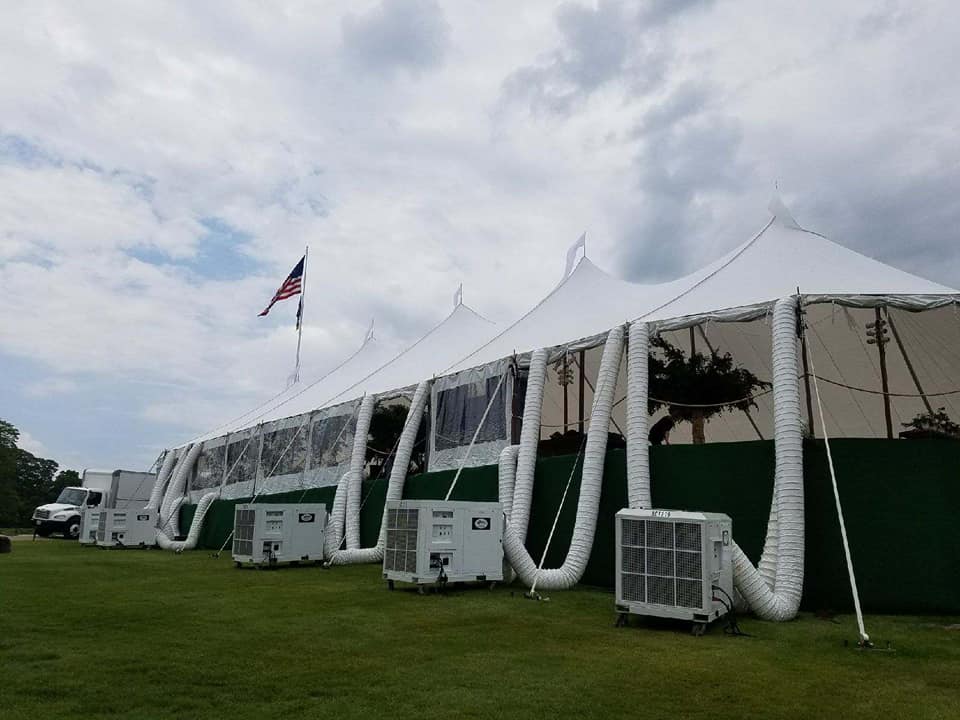

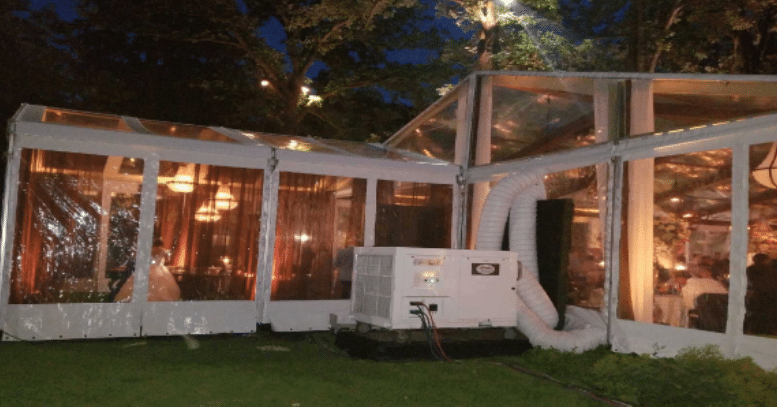

AC 12 TON on TENT
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Call: (630) 834-6000
Email: cees@charlesequipment.com
Heating Units

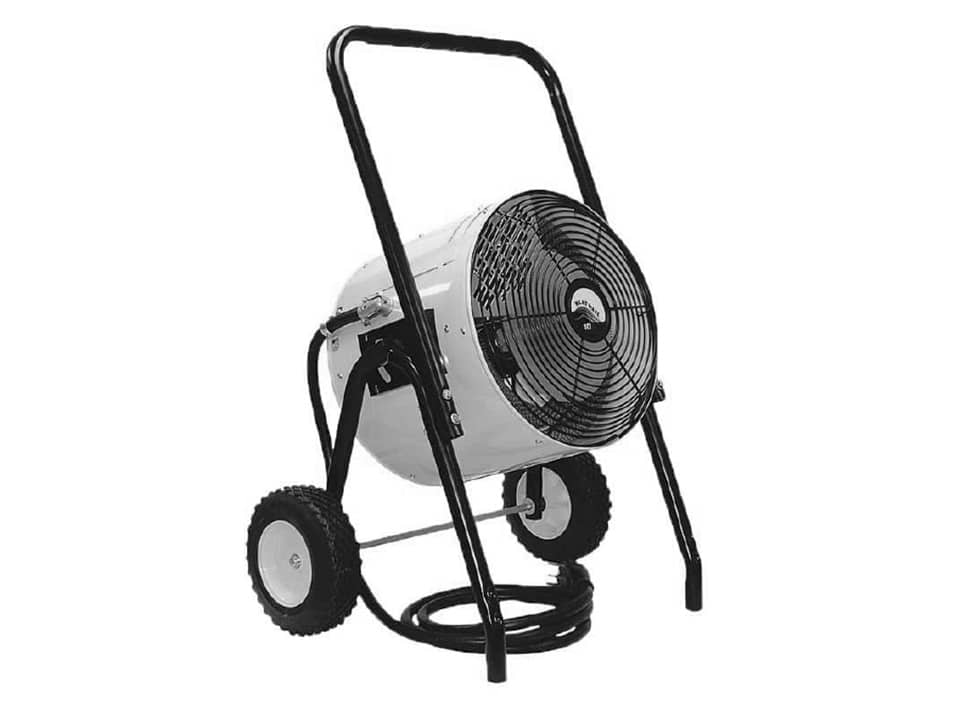

10KW Rental Electric Heater Fostorio FES
These portable heavy-duty heaters are perfect for heating up construction sites, factories, workshops, warehouses, garages, sheds, barns, and other spaces. The heater features an adjustable thermostat, finned heating elements, automatic reset, fan-only function, thermal cutoff switch, and 10 inch wheels for convenient transport and portability.
Call: (630) 834-6000
Email: cees@charlesequipment.com

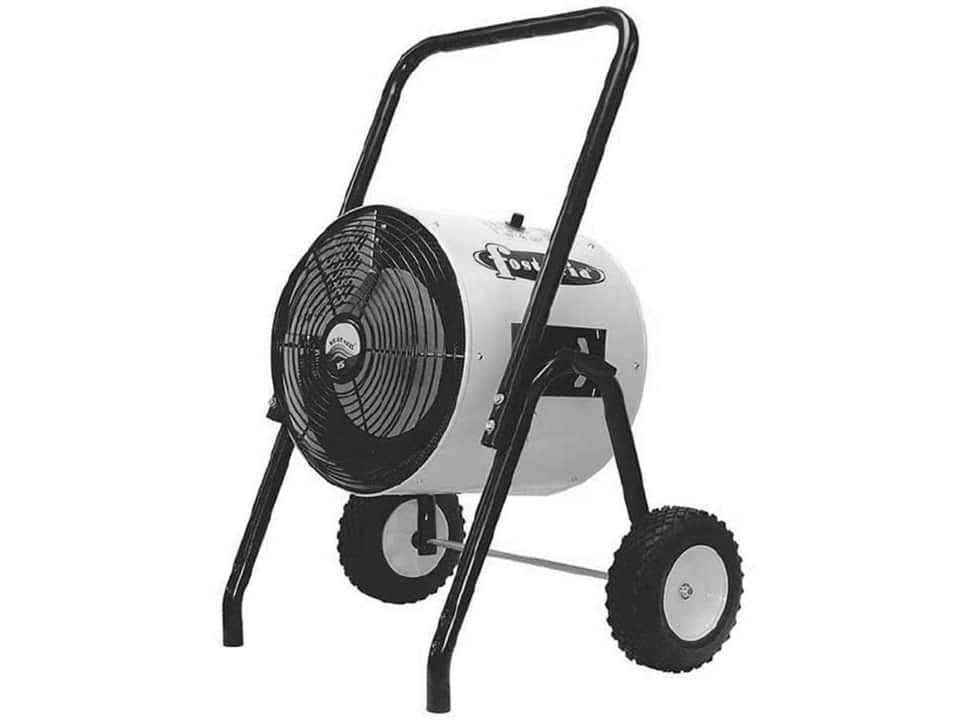

15KW Rental Electric Heater Fostorio FES
5kW electric construction heater 240 Volt single phase 30 amp. Maximum current electric heaters provide industry professionals with the climate control they need for indoor heating applications. Thermostat control. No need to deal with the hassles of refueling or monitoring the units while in use. DeWalt electric heaters operate with no open flame and no danger of carbon monoxide poisoning, or the odor of other noxious gases.
Call: (630) 834-6000
Email: cees@charlesequipment.com
